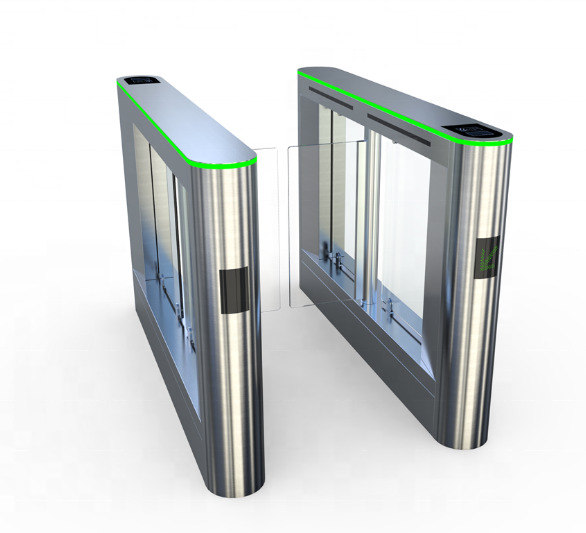

Office Shenzhen Access Control Turnstile Gate Turnstile Controller Turnstile Mechanism

1.0 Sets
MOQ
Office Shenzhen Access Control Turnstile Gate Turnstile Controller Turnstile Mechanism
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Model Number: TGW-ST004D
Product name: Driveway Double Wing Turnstile flap Barrier Gate TGW -WT001
Material: 304 Stainless Steel
Application: Office,School,Factory, Hotel,Park
Communication: RS485 TCP/IP
Power supply: AC220V/110V
Dimension: 1400*280*980(mm)
Card Type: IC/ID Card
Certificate: CE RoHS FCC
Weight: 80kg
Informations de base
Certification: CE RoHS FCC
Model Number: TGW-ST004D
Conditions de paiement et expédition
Packaging Details: Wooden carton
Supply Ability: 500 Set/Sets per Week
Description de produit
Product Description

Fingerprint Wings Turnstile Gate Mechanism Face Recognition Access Control Method TGW-ST002


This equipment is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, bar code, fingerprint reader and so on to provide intelligent control and management to flow control. Durable, anti-rusty. provide orderly passage to people, anti-illegal entry or exit, smooth operation, low noise. arm drops off in condition of emergencies.

This model is widely used in bus station, port, subway, factory, mansion, residential area, hotel, companies and so on any place that requires a smart flow control.


Description
Parameters
Lane Width
900-910mm
IP
IP54
Pass Speed
30 persons/min
Power supply
AC220V/110V,50/60Hz
Drive Mode
Motor drive
Max Power Consumption
200W
Opening time
0.5S
Humidity
≤90% coagulation free
Noise
≤50dB
Service Life
5,000,000 cycles
Outside packing
145x110x36cm
Working Environment
-20°C~+60°C
Gross Weight
85KGS

Main Features


○ Work voltage: AC220V±10% 50HZ±10%

○ Core: DC24V solenoid valve

○ Led direction indicator

○ Card reading window: standard or customized

○ Emergency : Barrier open automatically

○ Normal work life: 3,000,000 times

○ Communication interface: RS 485, distance ≤1200m

○Input interface: relay switch signal, 12V level signal or 12V pulse signal, pulse width>100ms,drive current >10mA

Details
Project Case
Our company

Factory

Pre-Sales Service

1. Professional pre-sales guidance, patient introduction to product function details.

2. According to the actual site requirements, give the appropriate product configuration.
3. Give the convincing test videos and photos, and invite them to visit.
4.Provide wiring diagrams, installation instructions and other details.
5. Smooth communication and give you a cost-effective solution, saving time and effort.

After-Sales Service

1. The first time to follow up the receipt confirmation.

2.Provide professional product installation and commissioning instructions and software hardware instructions.
3.Free remote installation debugging knows the service.
4.Paid field installation and commissioning.

Training how to instal the machine, training how to use the machine.

5.Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size(mm)
1300 (L) * 380 (W) * 1100 (D)
Weight
75-80 KGS



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Shipping
Volume m³
0.56/set
Weight
75-80KGS



Shipping Suggestion
Suggest for the sea shipping by containers, we also could send by air, express DHL,TNT,etc if emergency using.

Forwarders for optional and negotiation.
